ImperasOr1kuclinux



OVP Virtual Platform: Or1kUclinux

What is a Bare Metal Platform?

A 'Bare Metal' Platform consists of a single processor with memory available over its complete address range.

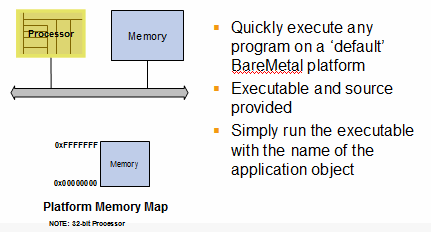

Bare Metal Platform

This is ideal for execution of a user application that has been compiled for the target processor core using cross-compilation.

Obtaining the Or1kUclinux platform and the OVP Simulator

The source and binary of the bare metal platforms are part of the OVP/Imperas downloads and live on a VLNV (Vendor Library Name Version) path.

To download from OVPworld, browse the OVP downloads page and download the OVPsim package. Click here to browse available downloads.

When installed this platform is found in your installation here: ImperasLib/source/imperas.ovpworld.org/platform/Or1kUclinux/1.0.

Running the Bare Metal Platform

1. Run the installer to install into a local directory on your PC. We recommend you use a path without spaces, for example your home directory.

2. Enter the Demo Directory IMPERAS_HOME/Demo/Or1kUclinux

3. On Windows, double-click on the batch file xx.bat and on Linux run the script xx.sh to run a simple application elf file on the Bare Metal Platform.

You will see output something like:
Info (ARM_NEWLIB_RDI_HEAP_INFO) RDI heap_base=0xc0000000
Hello
Info (ARM_NEWLIB_RDI_EXIT) Process has ended (exit)
Info
Info ---------------------------------------------------
Info CPU 'CPU1' STATISTICS
Info   Type                  : arm
Info   Nominal MIPS          : 100
Info   Final program counter : 0x91a4
Info   Simulated instructions: 4,175
Info ---------------------------------------------------
Info
Info ---------------------------------------------------
Info SIMULATION TIME STATISTICS
Info   Simulated time        : 0.00 seconds
Info   User time             : 0.02 seconds
Info   System time           : 0.00 seconds
Info ---------------------------------------------------

Setting Up for Re-building the Application

To rebuild the application and create the elf file you will need 3 things:
  • Cross-Compiler toolchain for thi processor
  • An OVP Installation
  • MSYS / MINGW environment (Windows Users Only)

Download and Installing the Cross-Compiler Toolchain

To download an appropriate tool chain, browse the OVP downloads page and download the package. Click here to browse.
If there is not one available please ask on the forum.

Once downloaded run the installer <packageName>.Windows32.exe for Windows and <packageName>.Linux32.exe for Linux to install on your PC.

Installing MSYS / MINGW Environment (Windows Users Only)

Obtaining and installing the MSYS and MINGW environment is described in Imperas_Installation_and_Getting_Started.pdf.

Rebuilding

You will need to be in the Demo/'baremetaldemodir' directory using an MSYS shell for Windows or a Linux shell.

Re-building the Application
> make application

Re-building the Bare Metal Platform
> make platform

Executing the application on the platform
You can just double click on the .bat file as done previously, or you can run from the msys command line:
> ./BareMetal.OS.exe hello.CROSS.elf



This page provides detailed information about the OVP Virtual Platform Model of the imperas.ovpworld.org Or1kUclinux platform.

Description

Platform for an Or1k Processor to execute uCLinux.

Licensing

Open Source Apache 2.0

Limitations

Provides sufficient functionality to execute uCLinux operating system and OR1K elf files

Location

The Or1kUclinux virtual platform is located in an Imperas/OVP installation at the VLNV: imperas.ovpworld.org / platform / Or1kUclinux / 1.0.

Platform Summary

Table : Components in platform

TypeInstanceVendorComponent
Processorcpu1ovpworld.orgor1k
Peripheraluart1national.ovpworld.org16550
Memorymem1ovpworld.orgram
Memorymem2ovpworld.orgram
Busbus1(builtin)address width:32

Platform Simulation Attributes

Table 1: Platform Simulation Attributes

AttributeValueDescription
stoponctrlcstoponctrlcStop on control-C



Command Line Control of the Platform

Built-in Arguments

Table 2: Platform Built-in Arguments

AttributeValueDescription
allargsallargsThe Command line parser will accept the complete imperas argument set. Note that this option is ignored in some Imperas products

When running a platform in a Windows or Linux shell several command arguments can be specified. Typically there is a '-help' command which lists the commands available in the platforms.
For example: myplatform.exe -help

Some command line arguments require a value to be provided.
For example: myplatform.exe -program myimagefile.elf

Platform Specific Command Line Arguments

No platform specific command line arguments have been specified.



Processor [ovpworld.org/processor/or1k/1.0] instance: cpu1

Instance Parameters

Several parameters can be specified when a processor is instanced in a platform. For this processor instance 'cpu1' it has been instanced with the following parameters:

Table 3: Processor Instance 'cpu1' Parameters (Configurations)

ParameterValueDescription
mips100The nominal MIPS for the processor

Memory Map for processor 'cpu1' bus: 'bus1'

Processor instance 'cpu1' is connected to bus 'bus1' using master port 'INSTRUCTION'.

Processor instance 'cpu1' is connected to bus 'bus1' using master port 'DATA'.

Table 4: Memory Map ( 'cpu1' / 'bus1' [width: 32] )

Lo AddressHi AddressInstanceComponent
0x00x8FFFFFFFmem1ram
0x900000000x90000007uart116550
0x900000080xFFFFFFFFmem2ram

Net Connections to processor: 'cpu1'

Table 5: Processor Net Connections ( 'cpu1' )

Net PortNetInstanceComponent
intr2int1uart116550



Peripheral Instances



Peripheral [national.ovpworld.org/peripheral/16550/1.0] instance: uart1

Licensing

Open Source Apache 2.0

Description

16550 UART model
The serial input/output from the simulator is implemented using the Serial Device Support described in OVP BHM and PPM API Functions Reference, which describes the parameters that control how the model interacts with the host computer.
Interrupts and FIFOs are supported.
Registers are aligned on 1 byte boundaries.

Limitations

Resolution of the baud rate is limited to the simulation time slice (aka quantum) size.
Values written to the MCR are ignored. Loopback mode is not supported.
The LSR is read-only. The model never sets the LSR 'Parity Error', 'Framing Error', 'Break Interrupt' or 'Error in RCVR FIFO' bits.
The MSR 'Data Set Ready' and 'Clear To Send' bits are set at reset and all other MSR bits are cleared. MSR bits will only be changed by writes to the MSR and values written to the Modem Status Register do not effect the operation of the model.

Reference

PC16550D Universal Asynchronous Receiver/Transmitter with FIFOs datasheet (http://www.ti.com/lit/ds/symlink/pc16550d.pdf)

Table 6: Configuration options (attributes) set for instance 'uart1'

AttributesValue
finishOnDisconnect1
