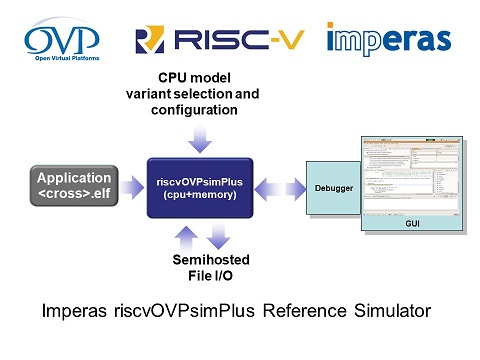

riscvOVPsimPlus
riscvOVPsim
To download riscvOVPsimPlus select one of the downloads below - you will need to be a registered user of this site, OVPworld.org. Register here.

All the packages below include suites of Imperas Architectural Validation tests. These tests are NOT meant to be a substitute for full hardware design verification - they are simplistic tests to exercise the instructions to explore if the implementer has understood the RISC-V specification being tested. This concept is from the RISC-V Compliance Working Groups work 2018-20 where they specified the need for compatibility tests to ensure that processors do implement a minimum functionality for spec compatibility in an acceptable way.

Each suite is focused on one area of the ISA and the ISA extensions. The tests are initially released at a basic level that checks each instruction is run and each instruction operand and qualifier in that ISA extension subset is used. The tests are then developed to work at an extended level where they test for values, including walking 0s and 1s as appropriate.

For example for the initial release of the F and D tests they only check operands - no detailed operand values are used and if you are developing RTL for F or D these tests are very simplistic and you really should be exploring the full IBM FP tests and formal verification to ensure you are designing quality RTL.

From May 2022 RISC-V International's Architectural Test SIG (formerly the compliance working group) has moved to using a Python program/framework v3.0 to run compliance testing and no longer provides signatures or scripts to run targets against their tests. As a service to RISC-V processor developers, Imperas ports the RVI tests to the Imperas test framework and makes them available as part of the Imperas test downloads. This means you can use all of the Imperas tests and all of the RVI tests from one simple make/bash framework. The RISC-V International tests have the -RVI suffix to their test suite dirs. See below to access these tests.

Release status of the tests suites can be found on github: test suites

Click to log in before viewing / downloadingDOWNLOAD riscvOVPsimPlus with IMPERAS RV32/64 I,M,C,Zmmul base tests
riscv-ovpsim-plus.v20231026.zip / FILE NOT FOUND

Click to log in before viewing / downloadingDOWNLOAD riscvOVPsimPlus with IMPERAS RV32/64 I,M,C base tests and F & D Floating Point tests
riscv-ovpsim-plus-fp-tests.v20231026.zip / FILE NOT FOUND

Click to log in before viewing / downloadingDOWNLOAD riscvOVPsimPlus with IMPERAS RV32/64 I,M,C base tests and B Bitmanip tests
riscv-ovpsim-plus-bitmanip-tests.v20231026.zip / FILE NOT FOUND

Click to log in before viewing / downloadingDOWNLOAD riscvOVPsimPlus with IMPERAS RV32/64 I,M,C base tests and K Crypto (scalar) tests
riscv-ovpsim-plus-crypto-tests.v20231026.zip / FILE NOT FOUND

Click to log in before viewing / downloadingDOWNLOAD riscvOVPsimPlus with IMPERAS base and example configuration V Vector test suites
riscv-ovpsim-plus-vector-tests.v20231026.zip / FILE NOT FOUND

Click to log in before viewing / downloadingDOWNLOAD riscvOVPsimPlus with IMPERAS base and P SIMD/DSP test suites
riscv-ovpsim-plus-dsp-tests.v20231026.zip / FILE NOT FOUND

Click to log in before viewing / downloadingDOWNLOAD riscvOVPsimPlus with IMPERAS RV32 Embedded test suites
riscv-ovpsim-plus-rv32emc-tests.v20231026.zip / FILE NOT FOUND

Click to log in before viewing / downloadingDOWNLOAD riscvOVPsimPlus with RISC-V International Architectural Validation tests
riscv-ovpsim-plus-rvi-tests.v20231026.zip / FILE NOT FOUND


Downloads include the complete open source of the Imperas OVP RISC-V processor model under the Apache 2.0 license which can be viewed here: Apache 2.0 open source license.

The included tests are under an open source OVP license which can be viewed here: OVP Fixed Platform source license.

Downloads include a free closed source version of the OVPsim simulator, and so the downloads are under the Imperas OVP Fixed Platform Technology License (Oct 2020) which can be viewed here: OVP Fixed Platform usage license.

If you do not want to register here, you can download the free riscvOVPsim compliance simulator from github.com/riscv-ovpsim.
